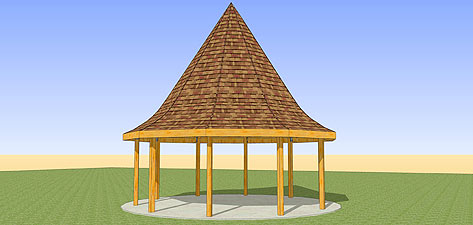

The strong architectural lines of the Winston make it ideal for any venue: private residences and developments, golf courses, greenways, and much, much more. Standard sizes include 20’, 25’ & 30’. Custom sizes are also available.

SHELTER SIZE

The Winston is a 10 sided pavilion and the size of the shelter refers to the distance across the shelter along the hip beam line which would be: the corner to corner width. For example, a 30’ Winston shelter measures 30’ corner to corner of the roof across the shelter. Custom sizes are also available.

THE Winston PACKAGE COMPONENTS


COLUMNS
Pressure treated, prior to gluing, laminated wood columns, 13’ 9” long -- to be embedded 3’ 9” in the concrete for stability. The lumber is treated prior to gluing which affords full penetration of the core of the columns. Special 4” annular nails to be “partially nailed” into the portion of the columns embedded in the concrete footings to provide improved anchorage against wind uplift.

BEAMS
Curved laminated wood hip beams. Steel connections and bolts that connect the beams to each other and to the columns.

ROOF DECK
2x6 or 2x8” (nominal sizes) #1 grade, Southern Yellow Pine wood decking (tongue and groove and end-matched) is nailed to the top of the beams. Galvanized nails to attach the deck to the beams.

NAILERS
2x2” nominal nailers to be attached (nailed) to the roof deck at the eave. The fascia is nailed to the deck and the nailer. Galvanized nails to attach the nailers to the deck.

FASCIA
2x6” pressure treated, #1 grade, Southern Yellow Pine, fascia board to be attached at the eaves Galvanized nails to attach the fascia to the beam ends and the deck.

FELT & SHINGLES
One layer of #30 roofing felt to be applied on top of the wood deck. 25 yr. 3-Tab fiberglass shingles, standard color Autumn Brown, other color options available upon request.

ROOF PITCH
Requested.

DESIGN LOADS
The typical design load allows for:
12 pounds per square foot dead load
30 pounds per square foot live load
20 pounds per square foot wind load. (Equates to 100 MPH)

There are variables that affect the design sizes of the members, specifically the columns and the curved beams, and those variables generally include live load conditions which are usually location specific. Building Codes usually dictate the applicable loads to be applied in the member size designs.

PRESSURE PRESERVATIVE TREATMENT
As noted in the component list above, the wood columns are fabricated with lumber pressure treated (prior to gluing) with Penta-WR type “C”, at .6 pcf [6 tenths of a pound of preservative per cubic foot of wood] retention for “ground contact”). For applications where the treated member is not in ground contact, the treatment retention is .3 pcf. Fascia boards are treated with pentachlorophenol, and the .3 pcf retention is used. EnWood utilizes the pentachlorophenol treatment because of its premier qualities and the treatment does not discolor the wood and can be stained or painted.


Custom Sizes & Designs Available

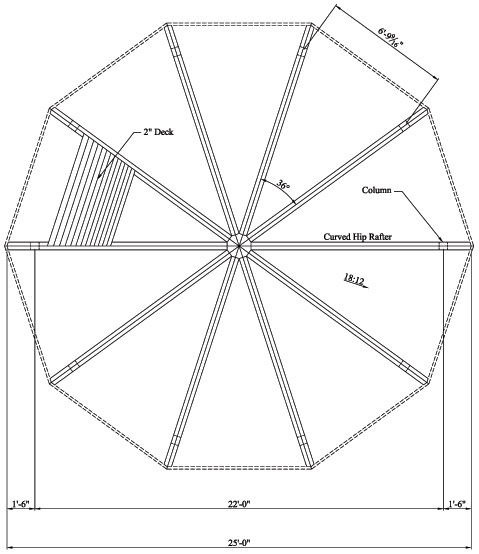

Roof Framing - 25' Winston
